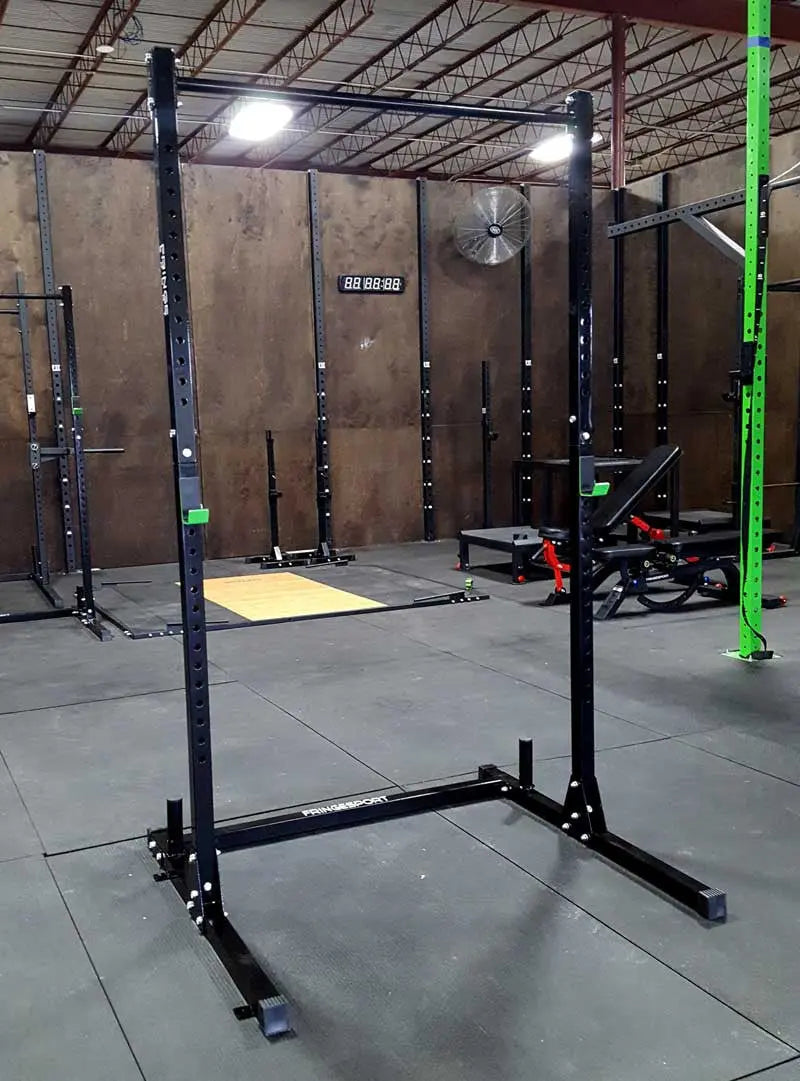

Product Name: Squat Rack with Pullup Bar - Life Series

Description: This squat rack with pullup bar is one of our best and most budget-friendly racks that we offer and possibly on the market. It also has a small footprint, which is important when you're building a garage gym.

The base comes with mounting tabs so you can bolt to the floor. There are also plate horns that you can use to not only store bumpers between lifts or workouts, but also make the rack more stable.

Weight Capacity: 300lb

Weight: 60lb

Dimensions: 85" tall x 46" wide x 50" deep



Download Instructions Here

Step 1: Place the base tubing with the cement mounting tabs facing away from each other. (Figure A)

Step 2: Using a rectangular bolt mounting plate on the outside of the base tubing, bolt the crossbar to the parallel base legs. (Figure B)

Step 3: Place the lower half of the upright tubing on the base legs (Figure C), then use the 1” bolts and washers to secure them front and back. (Figure D)

Step 4: Bolt two triangular mounting plates to each tubing intersection. (Figure E)

PROTIP: Insert all bolts into the plates before tightening to ensure the correct fit.

Step 5: Assemble the upper tubing on the ground using the remaining mounting plates on the outside. (Figure F)

Step 6: Place the upper tubing onto the completed base (Figure G), then secure with four 1” bolts. (Figure H)

Step 7: Slide the plate horns on the horn pegs and secure them with a hex wrench. (Figure I)

Step 8: Peel the red backing from the plastic J-Cup protectors and carefully apply to the inside of the cups. (Figure J)

Step 9: Enjoy your Squat Rack with Pullup Bar (Life Series) by FringeSport!
